Home Use Solar PV / Storage Batteries / UPS

Home Use Solar

Fuyuka Battery Items (examples)

The listed items refer to the existing models that Fuyuka already has the capability of production in mass lot, but not limited to the items already listed. More items in custom design are to be available upon requirement, as for applications:

  • Home use solar system power supply (Below 10KW).
  • Portable power supplies for out-door / off-the-land operations.
  • Office based power supplies (AC/DC)
  • Telecom power supply / Backup power supply system.

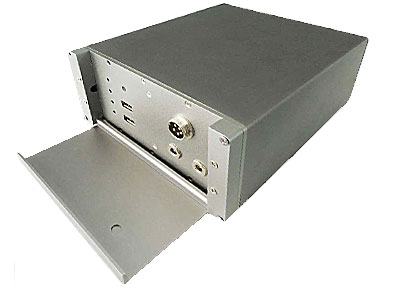

12V40AH / 24V20AH
  • Chemistry: Lithium-Ion
  • 12V 40AH / 24V 20AH
  • Dimensions: 235*160*80mm
  • Weight: 4.8kgs
  • Compatible with USB 5V 3A / DC 12V 3A / DC 19V 4A / 13.8V 10A connection
  • Application: BuB power supply

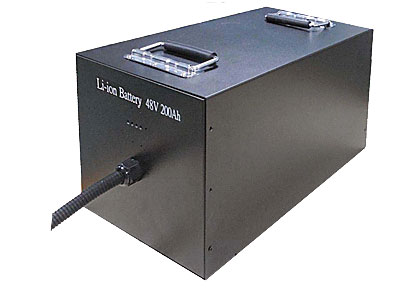

48V200AH
  • Chemistry: Lithium-Ion
  • 48V 200AH
  • Temperature range: (Discharge: -20~60°C)
  • Dimensions: 405*345*345mm (430)
  • Weight: 65kgs
  • Application: Solar PV / BuB power supply

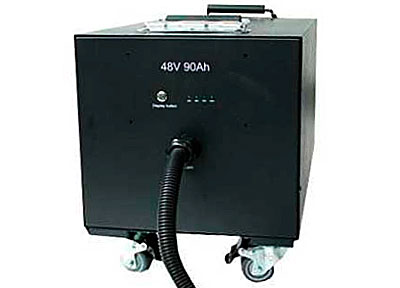

48V90AH
  • Chemistry: Lithium-Ion
  • 48V 90AH
  • Temperature range: (Discharge: -20~60°C)
  • Dimensions: 455*300*270mm
  • Weight: 49kgs
  • Application: Solar PV / BuB power supply

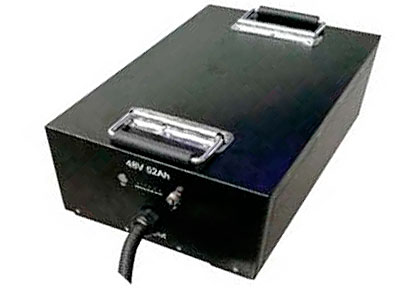

48V52AH
  • Chemistry: Ni-MH
  • 48V 52AH
  • Temperature range: (Discharge: -20~60°C)
  • Dimensions: 480*330*175(249)mm
  • Weight: 47kgs
  • Application: Solar PV / BuB power supply

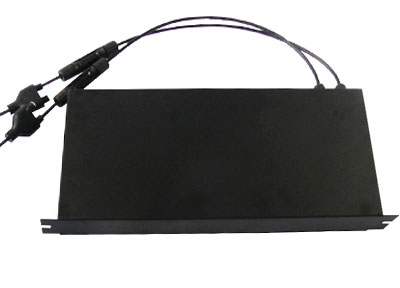

21.6V13AH
  • Chemistry: Ni-MH
  • 21.6V 13AH
  • Temperature range: (Discharge: -30~60°C)
  • Dimensions: 380*205*38mm
  • Weight: 6.9kgs
  • Application: Solar PV / BuB power supply

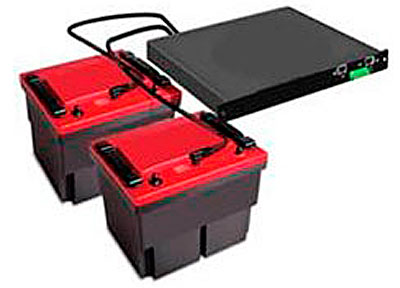

12V60AH
  • Chemistry: Nickel Metal-Hydride(High temperature type in extended cycle life)
  • 12V 60AH
  • Designed extremity temperatures: 1) -30~60°C 2) -10~70°C
  • Dimensions: 300*245*203mm
  • Weight: 17.1kgs
  • Application: Traffic lighting / Telecom power supply / BuB.
