E-Bike & Wheelchair

E-Bike-Wheelchair

Fuyuka Battery Items (examples)

The listed items refer to the existing battery models as of e-bike, wheelchair, skating board applications, etc, which Fuyuka already has the capability of production in mass lot, but not limited to the items already listed. More items in custom design are to be available upon requirement, as for applications:

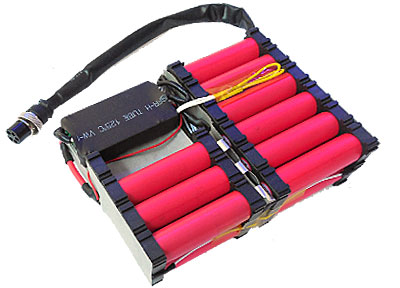

24V7.8Ah
  • Chemistry: Lithium-Ion
  • 24V 7.8Ah
  • Charging Volt: 29.4V
  • Charging currents: 3A-5A
  • Capable of 20A CC
  • Application: Electric wheelchair

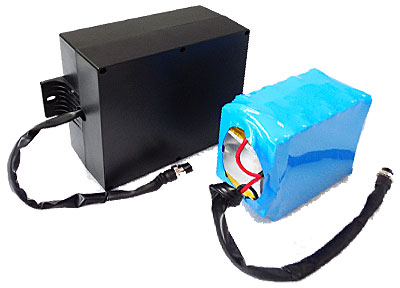

24V20.8Ah
  • Chemistry: Lithium-Ion
  • 24V 20.8Ah
  • Charging Volt: 29.4V
  • Charging currents: 5A-8A
  • Capable of 30A CC
  • Approximate Dimensions: 203*235 (187)*85mm
  • Application: Electric wheelchair

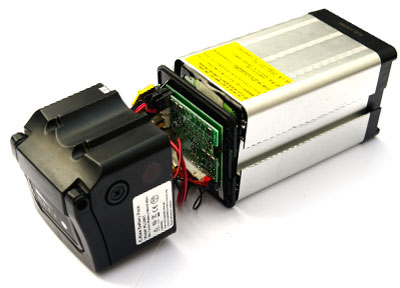

24V8.8Ah-24V10.4Ah
  • Chemistry: Lithium-Ion
  • 24V 8.8Ah / 24V 10.4Ah
  • Charging Volt: 29.4V
  • Charging currents: 3A-5A
  • Capable of 15A CC
  • Approximate dimensions:227*87*88mm
  • Application: Electric wheelchair, e-bike, etc

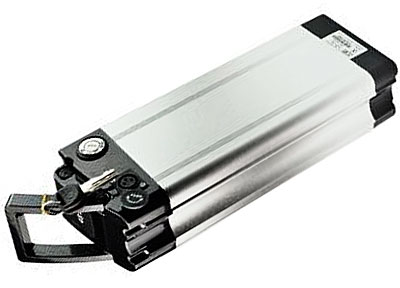

36V8.8Ah-36V10.4Ah
  • Chemistry: Lithium-Ion
  • 36V 8.8Ah / 36V 10.4Ah
  • Charging Volt: 42.0V
  • Charging currents 3A-5A
  • Capable of 15A CC
  • Approximate dimensions:428*95*84mm
  • Application:Electric bike

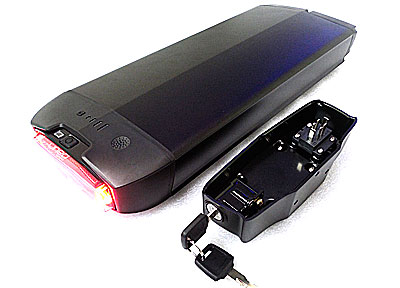

36V11.0Ah-36V13.0Ah
  • Chemistry: Lithium-Ion
  • 36V 10.4Ah
  • Charging currents 3A
  • Capable of 15A cc
  • Approximate dimensions:460*163*65mm
  • Application:Electric bike

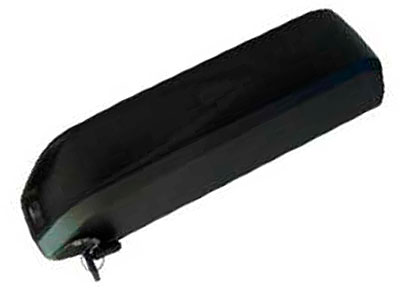

48V3Ah
  • Chemistry: Lithium-Ion
  • 48V 13Ah
  • Charging currents 5-8A
  • Capable of 8A cc and 15A peaks
  • Dimensions: 368*111*91mm
  • Application: Electric bike

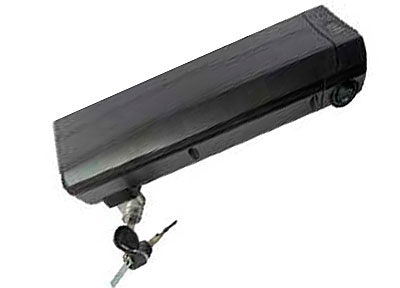

24V10.8Ah
  • Chemistry: Lithium-Ion
  • 24V 10.4Ah
  • Charging currents 3-5A
  • Capable of 8A cc and 15A peaks
  • Dimensions: 249*148*56mm
  • Application: Electric bike
