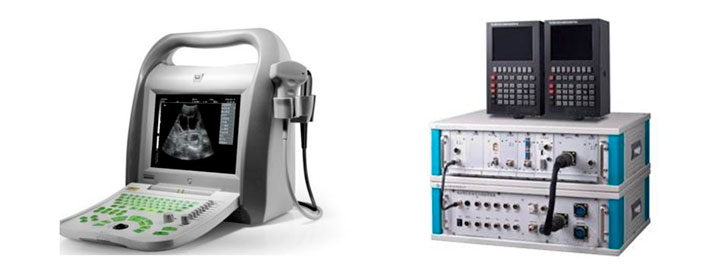

Healthcare_Medical_Utensils_Equipment

Fuyuka Battery Items (examples)

The listed items refer to the existing medical battery models that Fuyuka already has the capability of production in mass lot, but not limited to the items already listed. More items in custom design are to be available upon requirement, as for applications:

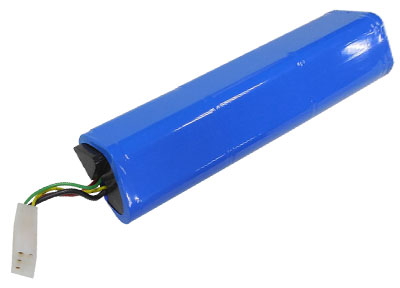

Chemistry: Lithium-Ion
Item No.: M3LF10806600A
10.8V 6600mAh / 71.28Wh
Dimensions:220*49*29mm
Weight: 490g
Charging currents: 2～3A
Capable of 3A cc and 5A peaks
With SMBus agreement
With primary + post-safe protection S8244
Application: Medical monitor(Lifepak 20e)

Chemistry: Lithium-Ion
Item No.: M3PH10807800A

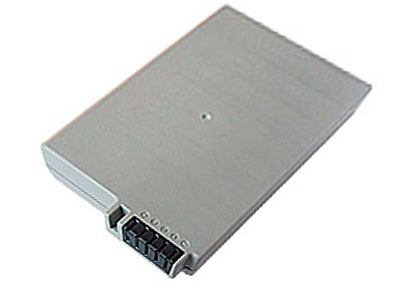

10.8V 7800mAh / 71.28Wh
Dimensions:148*90*20mm
Weight: 470g
Charging currents: 4A
Capable of 6A cc and 12A peaks
With SMBus agreement
With primary + post-safe protection S8244
Application: Medical device(Philips)

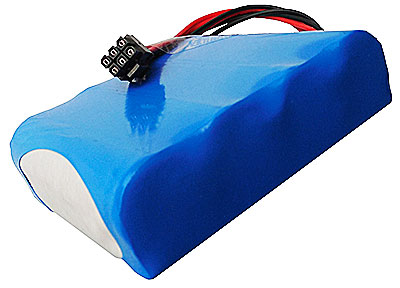

Chemistry: Lithium-Ion
Item No. (TBD)
14.8V 2600mAh / 38.48Wh
Dimensions: 75*66*23mm
Charging currents: 1A
Capable of 3A cc
With SMBus agreement
With primary + post-safe protection S8244
Connector: Molex 43025-0608
Application: Medical equipment

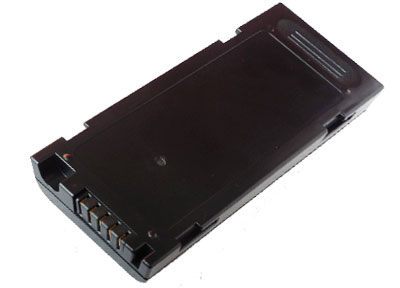

Chemistry: Lithium-Ion
Item No.: M3MN108052000A
10.8V 5200mAh / 54.6Wh
Dimensions: 182*62*23mm
Charging currents: 2A
Capable of 3A cc and 5A peaks
With SMBus agreement
With primary + multi-level temperature protection
Application: Medical equipment(Mindray)

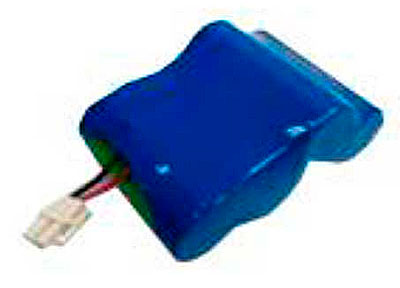

Chemistry: Lithium-Ion
Item No.: M3WL06406000A
6.4V 6000mAh / 38.4Wh
Dimensions: 99*68*41mm
Charging currents: 1.8A
Capable of 2A cc and 6A peaks
With SMBus agreement
With primary + post-safe protection
Application: Medical equipment (Welch Allyn)

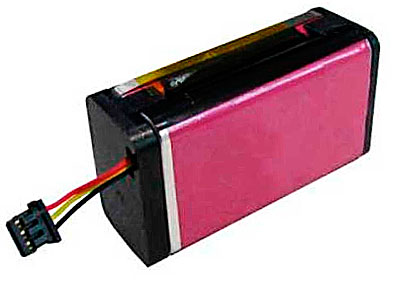

Chemistry: Lithium-Ion
Item No.: M3SA07402000A
7.4V 2000mAh / 14.8Wh
Dimensions: 57*35*22mm
Charging currents: 0.5A～1A
Capable of 1.5A cc and 2A peaks
With Monobus agreement
With primary + temperature protection
Application: Medical equipment(Saphire multi therapy)

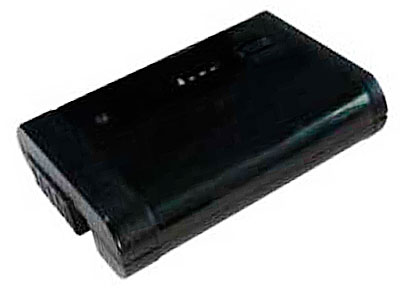

Chemistry: Lithium-Ion
Item No.: M3GE10802600A
10.8V 2600mAh / 28.08h
Dimensions: 82*60*20mm
Charging currents: 1A～1.5A
Capable of 2A cc and 3A peaks
With SMbus agreement
With primary + temperature protection
Application: Medical equipment(GE Transport Pro)

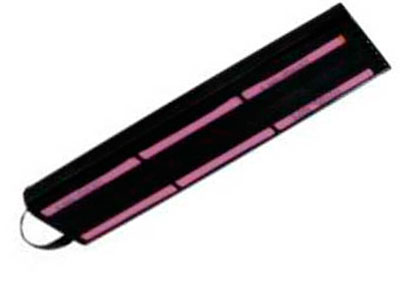

Chemistry: Lithium-Ion
Item No.: M3GE10805200A
10.8V 5200mAh / 56.16h
Dimensions: 215*53*20mm
Charging currents: 1.5A～2A
Capable of 2A cc and 5A peaks
With SMbus agreement
With primary + temperature protection
Application: Medical equipment(GE Transport Pro)
